KT FOIL Apex Ultra High Modulus Carbon Mast
$2,530.00
By KT Surfing
SKU:
Description

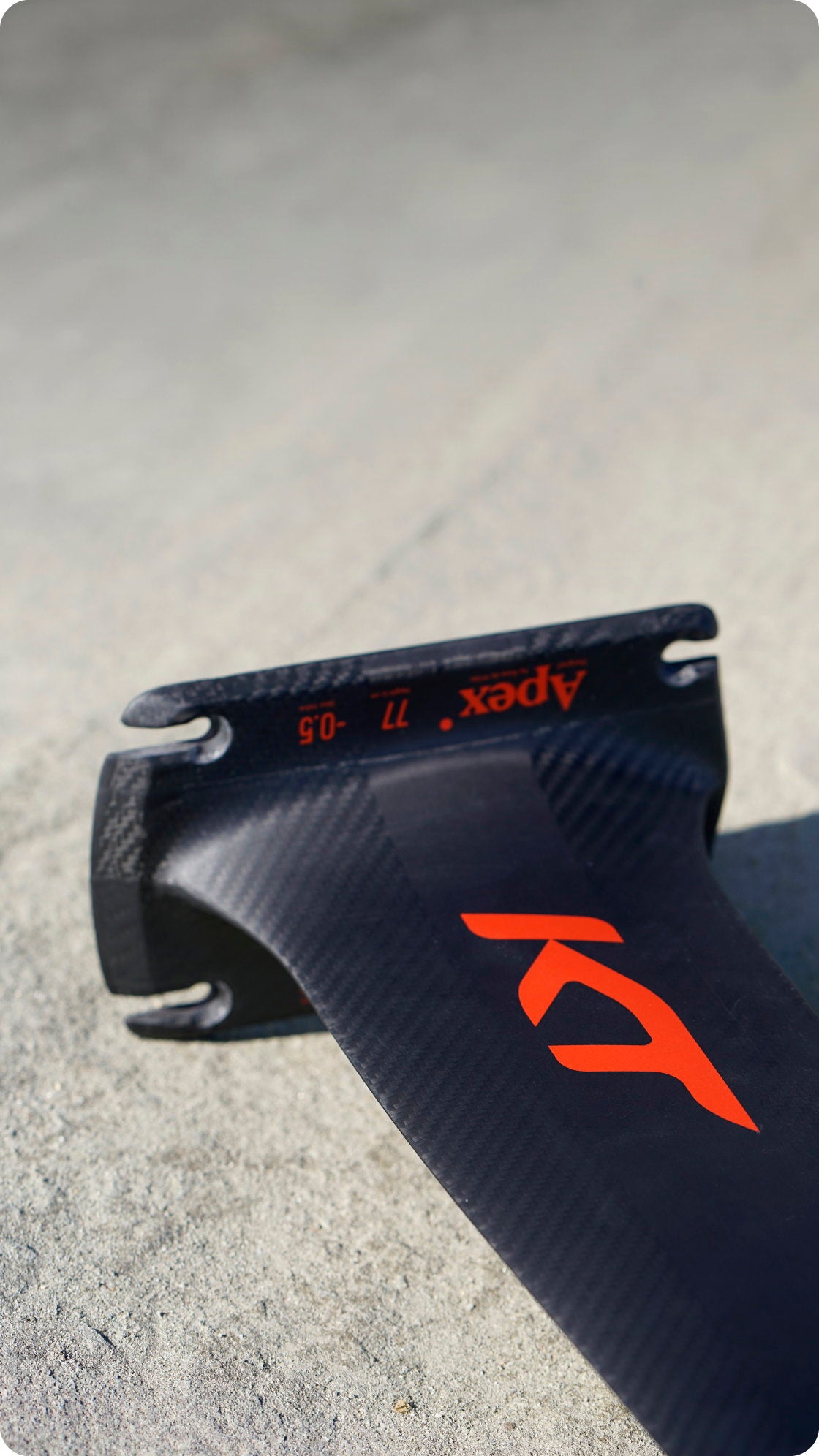

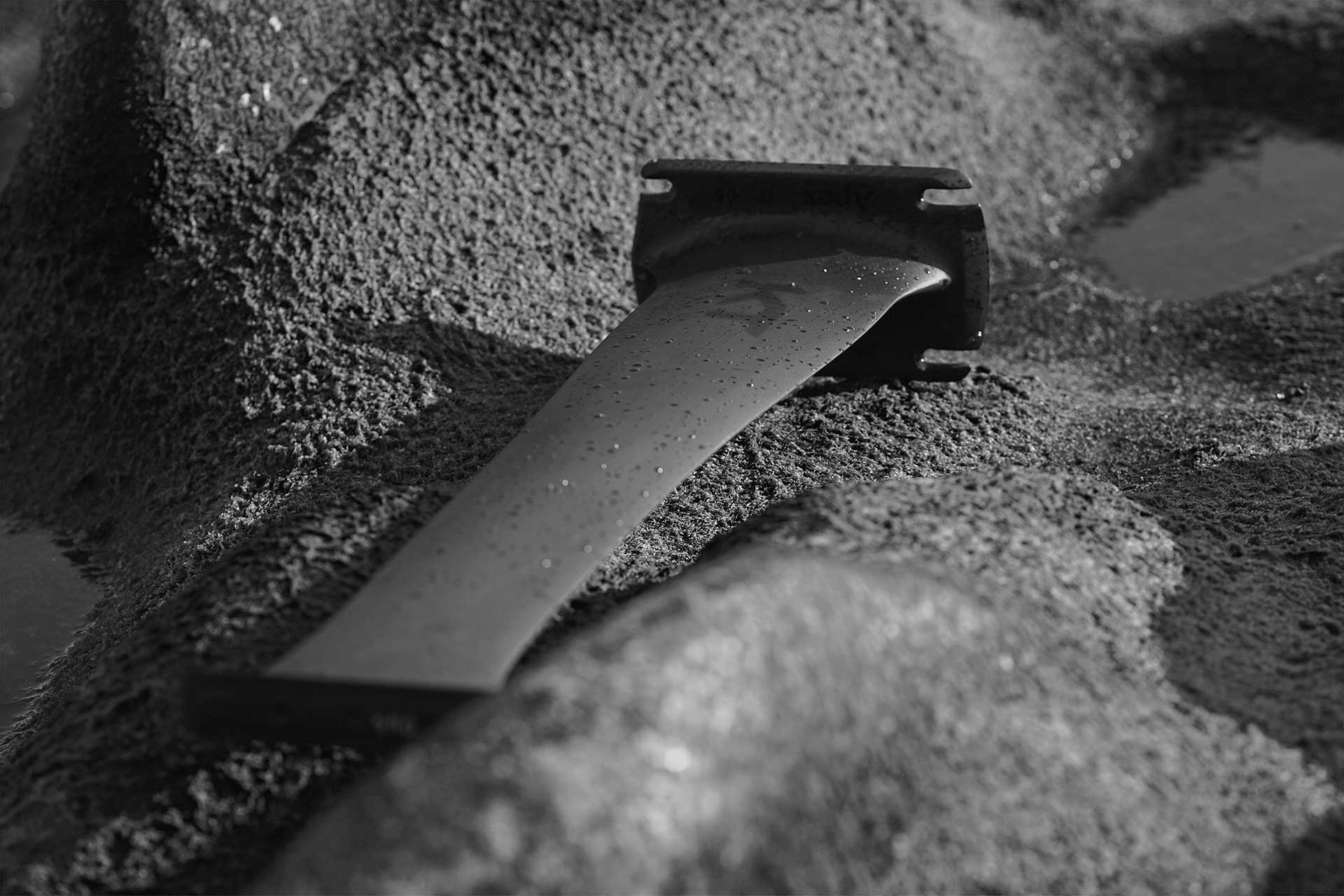

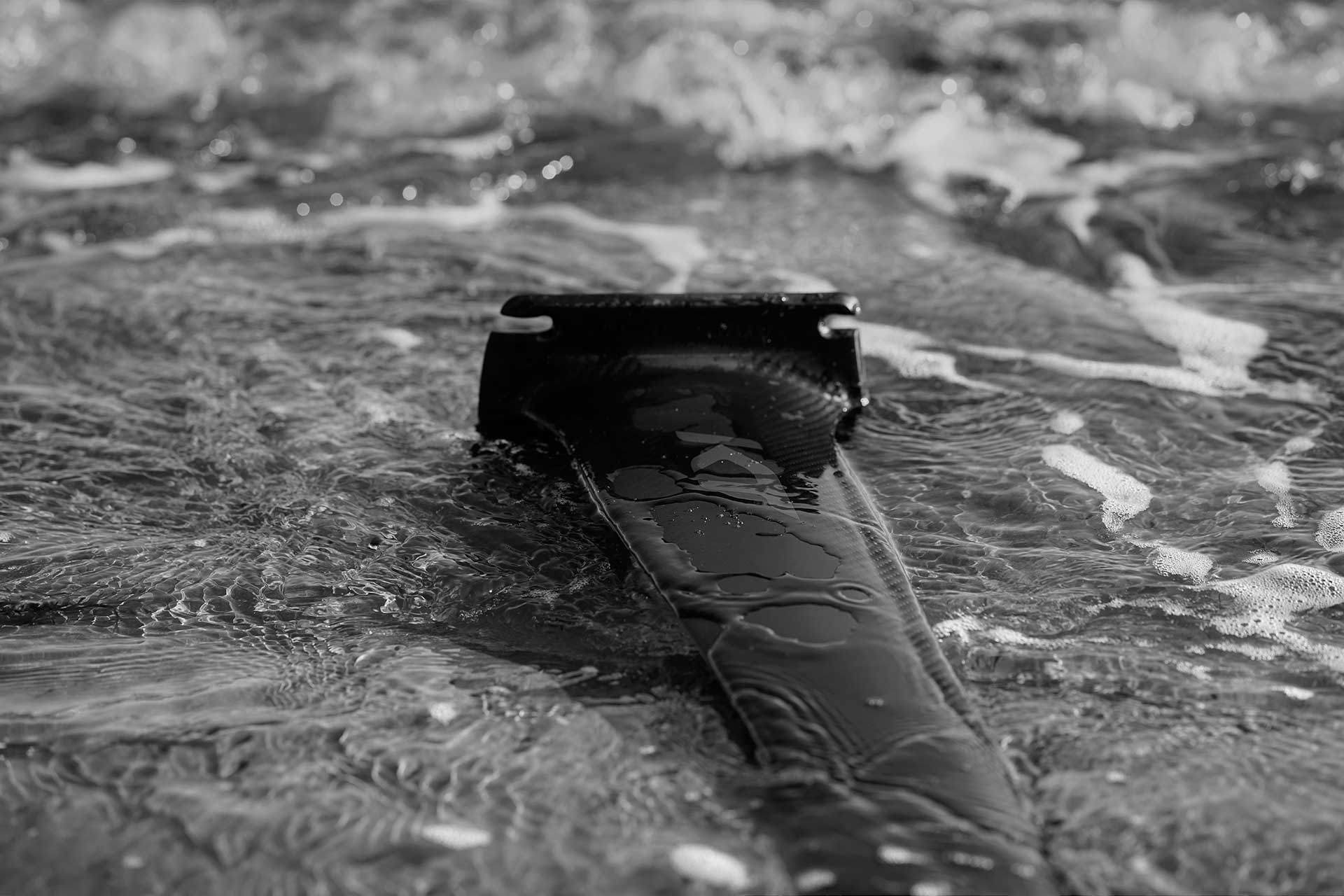

Apex Mast — Ultra High Modulus Carbon
The Apex introduces a truly discipline-driven mast series built to elevate efficiency, stiffness, and control to the next level. Each size is independently engineered — not simply scaled — delivering up to 30% less drag than standard carbon constructions.
Design Philosophy

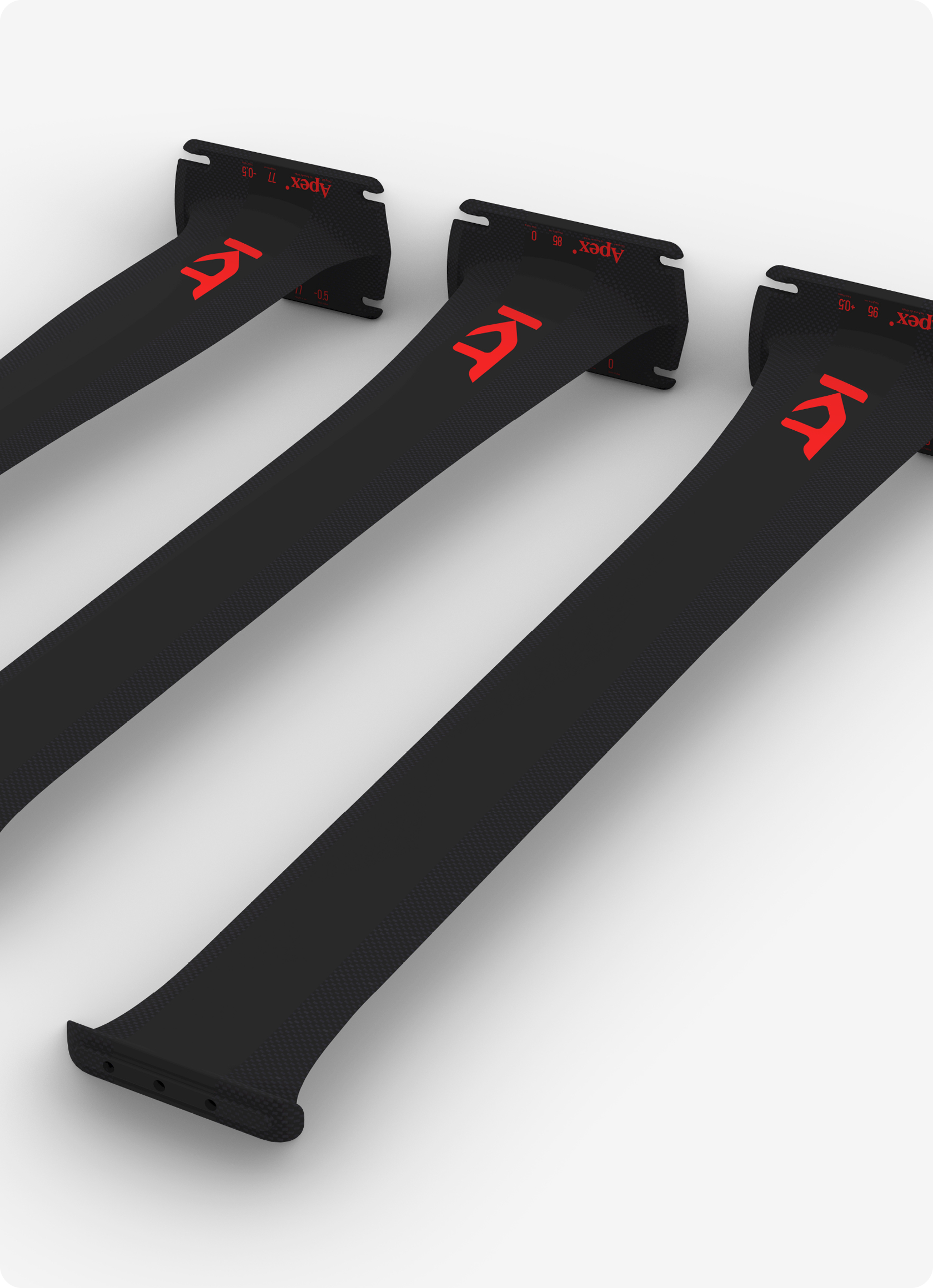

Unlike conventional mast lines, every Apex size (77, 85, 95 cm) features its own independent profile geometry, optimized for its specific discipline and use case. The result is enhanced speed, efficiency, and control regardless of which size you choose.
Key Technologies
- Forward-offset baseplate — reduces swing weight and improves balance
- Multi-airfoil profile — aggressive taper minimizes drag across all depths
- Uni-directional Ultra High Modulus Carbon — maximum stiffness and responsiveness
- Ultra High Density Core — structural rigidity without added weight
- Stainless Steel Helicoil Inserts — long-lasting, corrosion-resistant hardware connections
- Aggressive leading edge — enhances ventilation resistance
Available Sizes & Specifications
| Size | Top Chord | Bottom Chord | Top Profile | Bottom Profile |
|---|---|---|---|---|
| 77 cm | 128.4 mm | 91.8 mm | 15.8 mm | 13.3 mm |
| 85 cm | 118.2 mm | 98.5 mm | 14.1 mm | 13.2 mm |
| 95 cm | 113.9 mm | 98.5 mm | 13.5 mm | 12.9 mm |
Disciplines
Downwind Race, Prone, Wake, Tow, Wing, Wave, Freeride, Freestyle, Race, Big Wave
